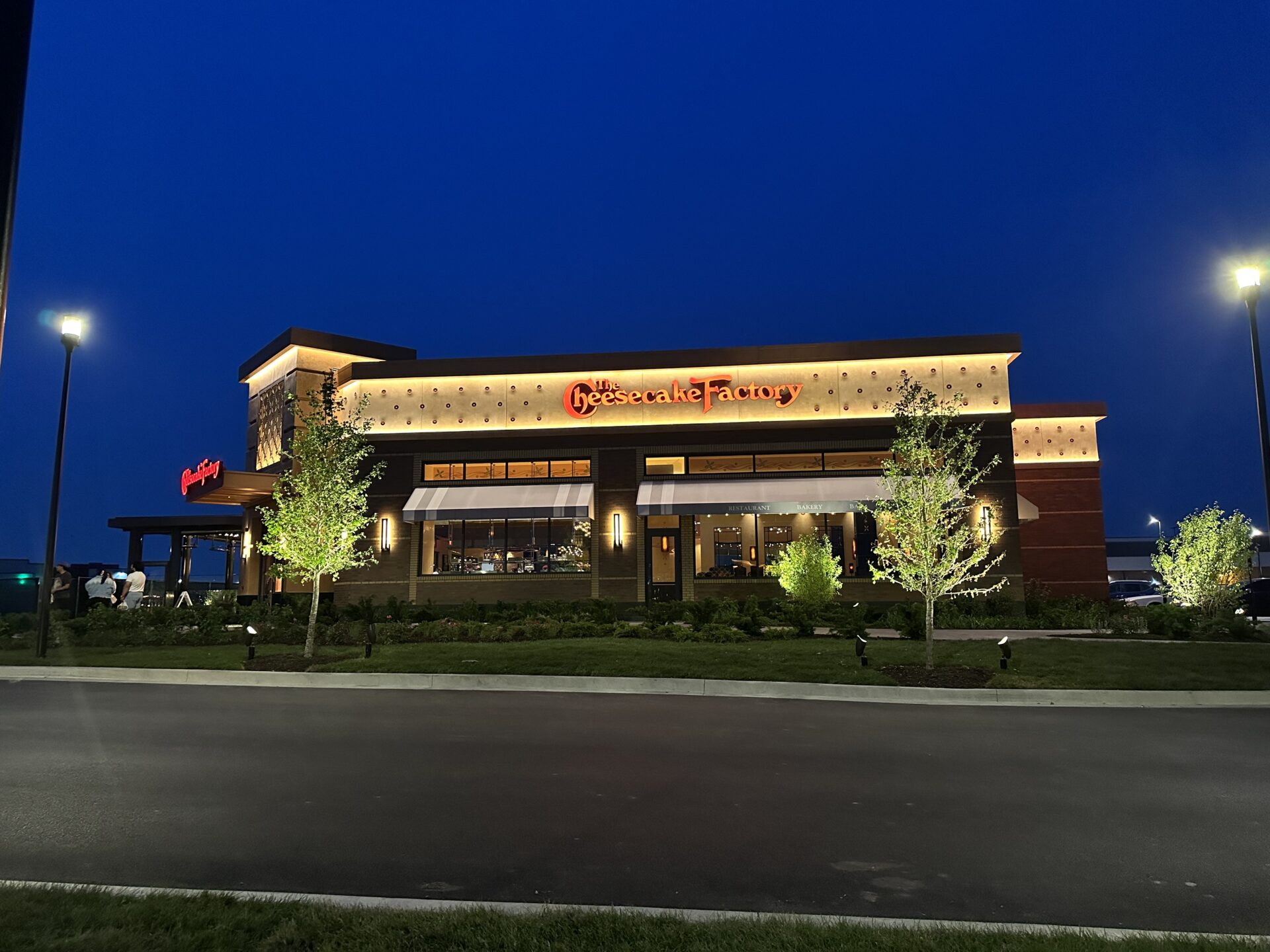

Cheesecake Factory

428 S. State Rd. 59, Naperville, Illinois

Contractor: Shawmut Design & Construction

Architect: James Gartner & Associates Architects, Inc.

Masonry

  • Furnish, set-up, maintain, dismantle and remove all equipment (forklift, tube scaffolding, ladders, hand tools, etc.) necessary for the masonry portion of the project.
  • Furnish and install a combination of standard gray 8” & 12” CMU necessary for erecting new exterior service yard masonry walls as per drawings (. Block is to be installed in standard running bond using natural gray type ‘S’ mortar. Mortar joints are to be tooled concave, brushed and tooled to a final finish. All reinforcement per structural drawings.
  • Furnish and install stone cap on top of service yard walls per plans.

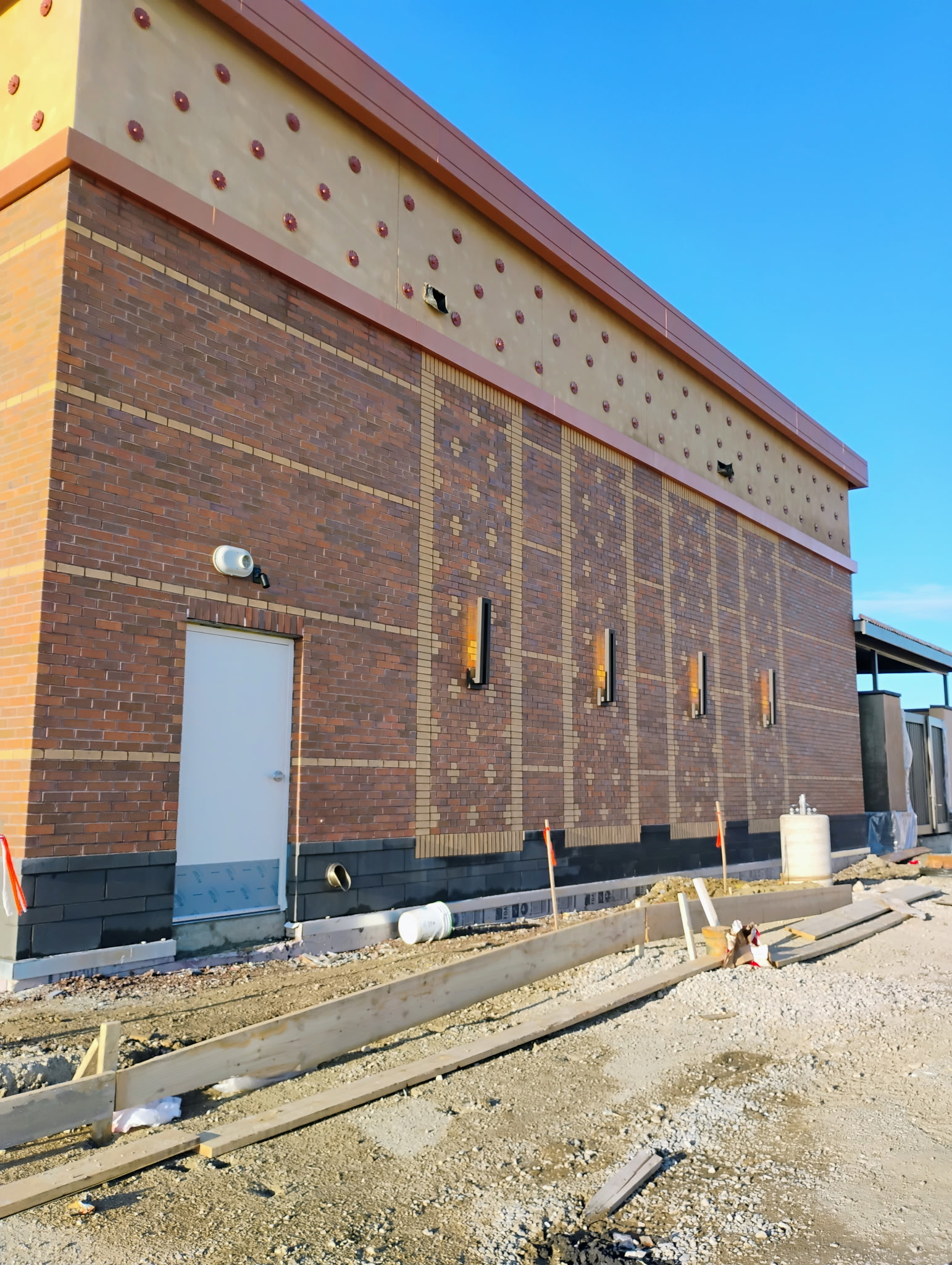

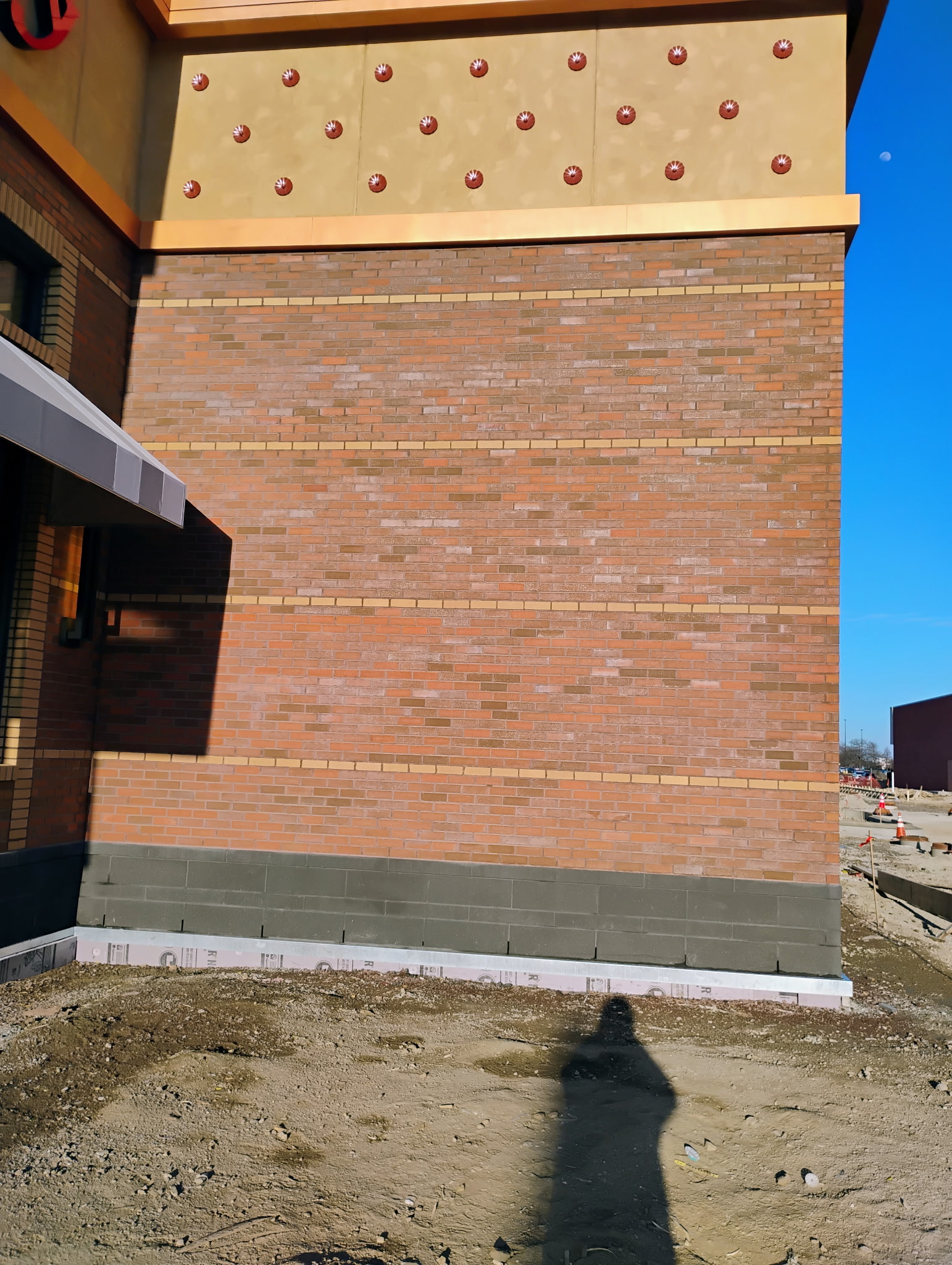

  • Furnish and install a combination of modular Belden brick per elevations (2 colors) and 4” and 8” *24” Rock cast units (4” thick) necessary for erecting new exterior veneer as per drawings. Brick and stone is to be installed in standard running bond using locally sourced standard color option type ‘N’ mortar. Mortar joints are to be tooled concave, brushed and tooled to a final finish. Specialty coursing to be installed as per elevations.
  • Furnish and install one (1) two-piece adjustable anchor every 16” O.C. for anchoring veneer to substrate.
  • Furnish and install 40mil self-adhesive flashing over 1.5” S.S. drip edge with cell vent weeps every 24” O.C. at base of new veneer and over openings within veneer as per drawings. 1” mortar trap to be installed at flashing locations.

Stucco

  • Furnish, set-up, maintain, dismantle and remove all equipment (tube scaffolding, ladders, hand tools, etc.) necessary for the masonry portion of the project.
  • Furnish and install approximately 5,100 S.F. of StoQuik Silver Drainscreen system at exterior elevations where stucco is shown (or Dryvit equal) per drawings.
  • Sto Gold coat to be furnished and applied to substrate by others.
  • Sto drainage mat to be furnished and installed.
  • ½” cement board to be furnished and installed.
  • Sto PAB, mesh, and standard texture option finish coat to be furnished and installed. Finish color to be as per drawings and texture to be selected from standard texture chart.
