5 Corners Multi-Family

South Bend, Indiana

Architect: Studio M

New Masonry

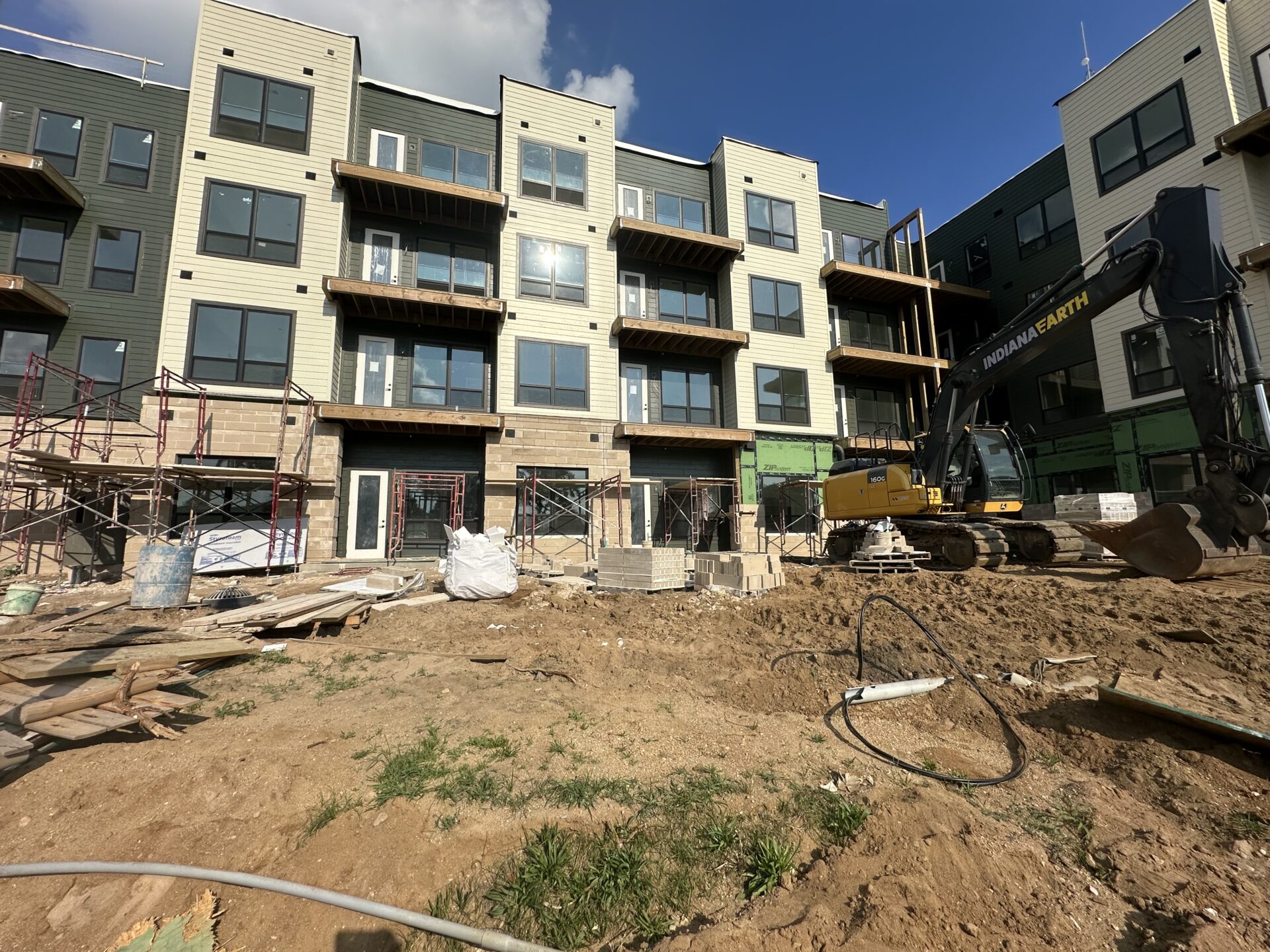

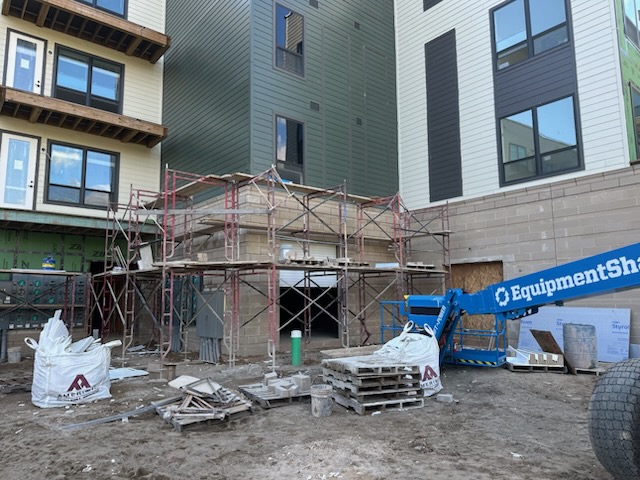

Furnish, set-up, maintain, dismantle and remove all equipment (scaffolding, forklift, tube scaffolding, ladders, hand tools, etc.) necessary for the new masonry portion of the project.

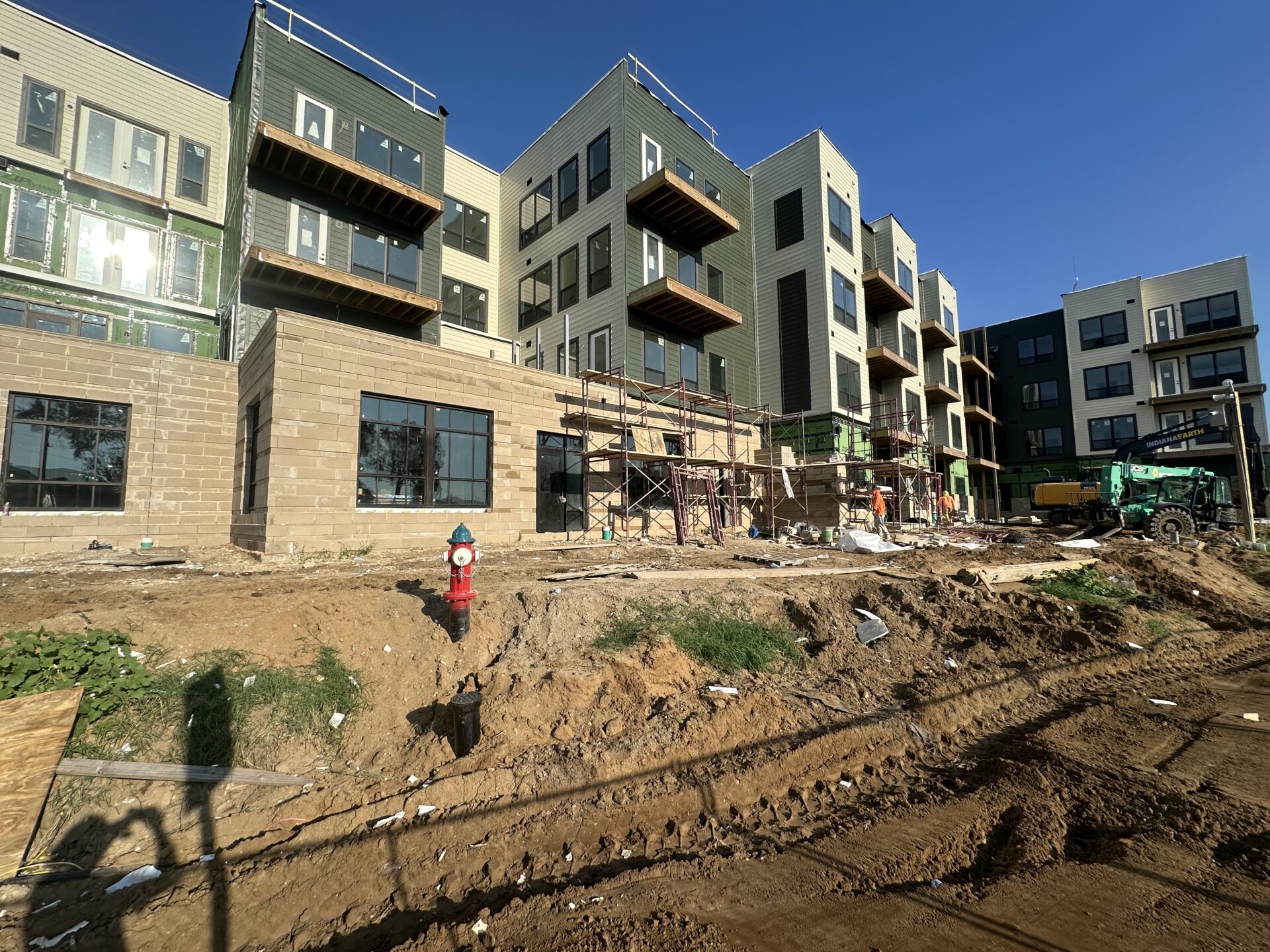

Install modular sized face brick (furnished and delivered to jobsite by others) necessary for erecting new exterior masonry veneer as per drawings. Brick to be installed in running bond using furnished colored type ‘N’ mortar. Mortar joints to be tooled concave, brushed and tooled to a final finish.

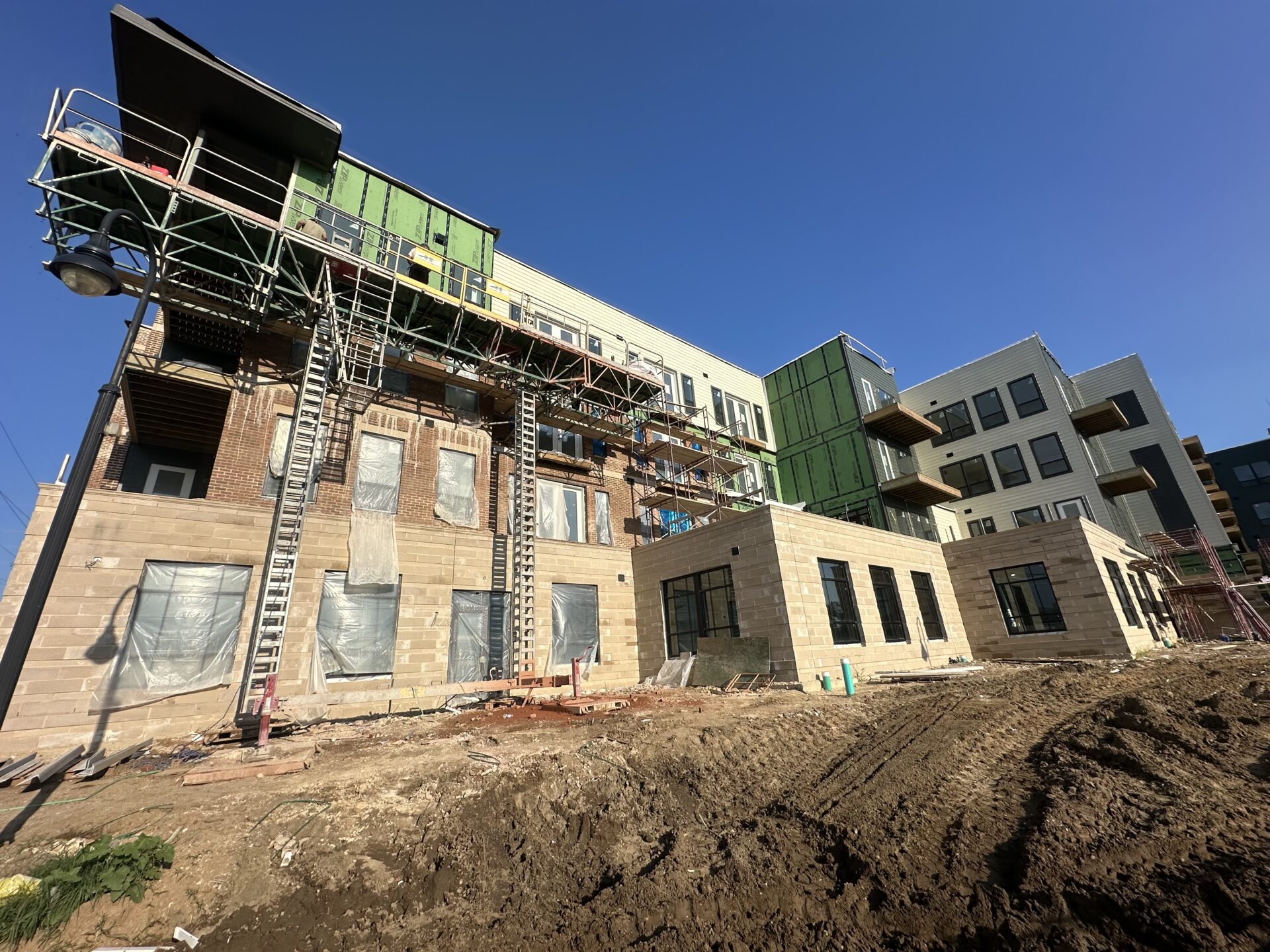

Install cast stone stretchers (4” and 8”), cast stone cornice, 8” banding, 8” headers, and 4” sills as per drawings within masonry veneer (furnished by others). Stone to be installed in running bond using furnished colored type ‘N’ mortar. Mortar joints to be tooled concave, brushed and tooled to a final finish.
Furnish and install one (1) two-piece adjustable anchor every 16” O.C. for brick/stone veneer.
Install loose steel lintels furnished by others on project site as necessary.
Furnish and install 40mil self-adhesive flashing over a 1½” stainless steel drip edge at the base of masonry walls and over openings in masonry with cell vent “weeps” installed in masonry head joints every 24” O.C. (and at top of walls). Furnish and install mortar trap at flashing locations as per drawings.
